Chains & Sprockets for Bevel Drive Twins & Singles

Info for all Front Sprockets - Bevel Twins

These sprockets were made in Italy

14 Tooth Sprocket for all Ducati DS1000 engines.

This is a 520 or 525 chain size, bolt on, steel, countershaft sprocket.  The easiest and least expensive way to get more oomph off the line on your Ducati Sport Classic.  NOTE: Stock chain size is 525!  Also fits any Ducati with the DS1000 engine, ST3, Multistrada 1000...   We stock 14 tooth sprockets but can get you 15 tooth [stock] if you prefer.   Made in the USA.

Front Sprocket Bevel Drive Twins - 530 chain size

For all bevel drive twins, 530 chain size, available in either 15 or 16 tooth Made in Italy

Front Sprocket Bevel Drive Twins - 520 chain size

For all bevel drive twins, 520 chain size, available in either 15 or 16 tooth Made in Italy
Front Sprocket Lock Nut

This is the "KM7" locknut that secures your countershaft [front] sprocket on ALL bevel drive twins.

Duacti #76800.3380
Front Sprocket Star Washer

For bevel drive twins countershaft nut.  This goes on your output shaft between the sprocket and the locknut above on bevel drive twins.
* For Paso/Sport 520 front sprocket can be added for $47 - order #BH624-14 or #BH624-15 for a 14 or 15 tooth sprocket
Info for all Front Sprockets - Bevel Singles

Front Sprocket 250 & 350 Bevel Drive Singles  - 428 chain size

Front sprocket for Bevel Singles - 428 chain size (stock 250-350cc) 15, 16 & 17 tooth sprockets available, please choose from the drop down. NOTE: Some sprockets might need a touchup with a file to fit on smooth and easy.

Front Sprocket 450 Bevel Drive Singles  - 530 chain size

Front sprocket for Bevel Singles 530 chain size (stock 450cc) 12 & 13 tooth sprockets available, choose from the drop down menu. NOTE: Some sprockets might need a touchup with a file to fit.
Info for all Front Sprockets - Ducati Pantah
Front Sprocket 520 15T - Ducati 851, 888, 906 Paso etc

15 tooth 520 sprocket for Ducati 851, 888, 906 Paso etc. [These sprockets are newly made for us by PBR in Italy, an OEM for Ducati].
Front Sprocket 530 15T - Ducati 600 Pantah etc

15 tooth 530 front sprocket for Ducati 600 Pantah and others [These sprockets are newly made for us by PBR in Italy, an OEM for Ducati].
Front Sprocket 520 15T - Ducati 750 Montjuich, Santa Monica etc

15T 520 front sprocket fits Ducati 750 Montjuich, 750 Santa Monica etc [These sprockets are newly made for us by PBR in Italy, an OEM for Ducati].
Front Sprocket 530 15T - Ducati 750 F1 etc

15 tooth front 530 sprocket fits Ducati 750F1 etc [These sprockets are newly made for us by PBR in Italy, an OEM for Ducati].
Front Sprocket 530 15T - Ducati 650 Indiana etc

15 tooth 530 front sprocket fits Ducati 650 Indiana etc [These sprockets are newly made for us by PBR in Italy, an OEM for Ducati].
Front Sprocket 520 14T - Ducati 750 Laguna Seca etc

14 tooth front 520 sprocket for Ducati 750 Laguna Seca etc [These sprockets are newly made for us by PBR in Italy, an OEM for Ducati].
Front Sprocket 530 15T - Ducati 500 Pantah & 650 Pantah etc

15 tooth 530 front sprocket fits Ducati 500/650 Pantah etc [These sprockets are newly made for us by PBR in Italy, an OEM for Ducati].
Info for all Rear Sprockets - Bevel Twins

530 Rear Aluminum "Titan Tough" Rear Sprocket - Bevel Drive Twins

Choose between 36, 37, 37, 39 & 40 tooth rear sprockets for Bevel Drive [pre 1985] Twins as well as 1987-90 Paso, 750 Sport & 906 Paso - 530 chain size! This is a TITAN TOUGH aluminum sprocket by Sprocket Specialists which has also had extra holes bored to make it lighter and look trick.  Titan tough = black hard anodized which means it will last like a steel sprocket at half the weight. This sprocket is IN STOCK - no waiting 7 weeks like if you order direct from the manuf... I had this batch made up with extra holes drilled as you can see, compared to the other sprockets offered, which accounts for a small increase in price.

Polished & Lightened 530 sprocket - Bevel Drive Twins

Choose between a 36, 37, 38, 39 & 40 tooth rear sprockets for Bevel Drive [pre 1985] Twins as well as 1987-90 Paso, 750 Sport & 906 Paso - 530 chain size! This is a polished aluminum sprocket by Sprocket Specialists which has also had extra holes bored to make it lighter and look trick. This sprocket is IN STOCK - no waiting 7 weeks like if you order direct from the manuf... If you want a different number of teeth please call me.........
38 T 530 Rear Aluminum Sprocket - Bevel Twins

This is a bare aluminum rear sprocket in 530 chain size which fits all bevel drive Ducati twins. We have 38 tooth sprockets in stock but can special order any other size you may want.... It will take a week if you order something other than 38 teeth right now anyways. So, if you want a 38 tooth bare aluminum sprocket, order 1 here. If you want some other number of teeth, please shoot me an email just before or after placing your order telling us to get you X teeth..... and we will do so.




 Sprocket Carrier Fastener Kit - now both Disk & Drum Hub Kits available -

Stainless steel button head allen bolts, nylock nuts and thin AN washer kit for your sprocket carrier. If you have a bevel drive with a rear disk brake such as DARMAH, 900SS, 750SS choose DISK HUB KIT. If you have a bevel drive with a drum brake such as 750GT, 750 Sport, 860GT/E/S, 900GTS etc choose DRUM HUB KIT. Each kit includes everything you see here - 5 each. These items bolt your sprocket to your sprocket carrier.

 		 Rear Sprocket Lock Tabs - bevel twins.

Set includes 1 ea:  #0795.80.255 and # 0795.80.260
Info for all Rear Sprockets - Bevel Singles

"Titan Tough" Rear 428 & 530 Rear Sprocket - Ducati Singles

428 & 530 chain size 'Titan Tough' hard anodized or bare aluminum sprockets are available from Sprocket Specialists for Ducati single cylinder bikes. These are available by special order and take between 1 and 5 weeks for production turn around. Please choose your size below along with the number of teeth you require from the drop down menu. If you need a different size, no problem, send us an email and we can handle you...

Polished & Lightened Rear 428 & 530 Rear Sprocket - Ducati Singles

428 & 530 chain size 'Titan Tough' hard anodized or bare aluminum sprockets are available from Sprocket Specialists for Ducati single cylinder bikes. These are available by special order and take between 1 and 5 weeks for production turn around. Please choose your size below along with the number of teeth you require from the drop down menu. If you need a different size, no problem, send us an email and we can handle you...
Info for all Chains - 428 & 530

TSUBAKI "Sigma" 530 O-Ring Chain - Black, 110 links

This is a VERY strong Tsubaki o ring chain in BLACK comes with a standard clip type master link and 110 links.

CHAIN: DID 428 NZ Series Gold & Black Non O-Ring

This is a top of the line DID gold and black NZ Series ER non oring 428 chain for Ducati Singles..... 120 pins and comes with a clip style master link. NICE!

Chain - DID 530 Black Standard Roller Chain - 110 links

Standard black 530 chain by DID comes with a clip style master link. No flash, just function. This is a standard non o ring roller chain.

Chain: DID 530 VM Series X-Ring Gold & Black

DID 530 "VM Series" X-Ring gold and black chain. This is the 2nd from the top of the line. A great chain and a bit less expensive then the top of the line ERV chain. 112 pins - includes a rivit style master link.

RK 530XSO X-Ring Chain Gold & Black

110 link gold and black RK 530 X-ring chain with rivit style master link. A very good option for our bevel drive twins

CHAIN: EK 530MVXZ Quadra-X Gold & Black X-Ring

One of the top tier chains by EK here. Gold and Black with a rivet style master link.

EK 530 MVXZ Quadra-X Ring Chrome Chain

Finally we found a very good SHOW CHROME chain for those of you wanting a little BLING on your bike. This is the top "quadra X ring" 530 chain, 110 links and comes with a clip style master link. Both the inside and outside plates are chrome along with the rollers.... Everything is silver here, no black.

CHAIN: EK 530 ZVX2 Quadra-X Gold & Black X-Ring

One of the top tier chains by EK here. Gold and Black with a rivet style master link.

CHAIN: REGINA 530RS Gold Non O-Ring

120 pin 530 chain size REGINA gold and black "RS" chain is MADE IN ITALY and includes a clip style master link. this chain has 7510 tensile strength and comes preloaded to increase fatigue strength and wear resistance. If you want a non o ring chain, this is it.

CHAIN: REGINA 530OR Gold & Black O-Ring

Gold and Black REGINA 530 O-Ring "ORT" chain, MADE IN ITALY and comes with a rivet style master link - 120 links.


Note: stock changes all the time, sometimes we get different brands and model chains in - check shopping cart for current inventory.  If it is posted there, then it is in stock.



Gear Chart - what do you have vs what do you want to do?
for more lower end, go LARGER on the rear or SMALLER on the front
for more top end, go SMALLER on the rear or LARGER on the front
  Front Sprocket # of teeth in RED across top
Rear sprocket # of teeth in BLUE on left
 It is BEST to have an ODD/EVEN combination
12 13 14 15 16 17
26 2.17 2.00 1.86 1.73 1.63 1.53
27 2.25 2.08 1.93 1.80 1.69 1.59
28 2.33 2.15 2.00 1.87 1.75 1.65
29 2.42 2.23 2.07 1.93 1.81 1.71
30 2.50 2.31 2.14 2.00 1.88 1.76
31 2.58 2.38 2.21 2.07 1.94 1.82
32 2.67 2.46 2.29 2.13 2.00 1.88
33 2.75 2.54 2.36 2.20 2.06 1.94
34 2.83 2.62 2.43 2.27 2.13 2.00
35 2.92 2.69 2.50 2.33 2.19 2.06
36 3.00 2.77 2.57 2.40 2.25 2.12
37 3.08 2.85 2.64 2.47 2.31 2.18
38 3.17 2.92 2.71 2.53 2.38 2.24
39 3.25 3.00 2.79 2.60 2.44 2.29
40 3.33 3.08 2.86 2.67 2.50 2.35
41 3.42 3.15 2.93 2.73 2.56 2.41
42 3.50 3.23 3.00 2.80 2.63 2.47
43 3.58 3.31 3.07 2.87 2.69 2.53
44 3.67 3.38 3.14 2.93 2.75 2.59
45 3.75 3.46 3.21 3.00 2.81 2.65
46 3.83 3.54 3.29 3.07 2.88 2.71
47 3.92 3.62 3.36 3.13 2.94 2.76
48 4.00 3.69 3.43 3.20 3.00 2.82
49 4.08 3.77 3.50 3.27 3.06 2.88
50 4.17 3.85 3.57 3.33 3.13 2.94
51 4.25 3.92 3.64 3.40 3.19 3.00
52 4.33 4.00 3.71 3.47 3.25 3.06
53 4.42 4.08 3.79 3.53 3.31 3.12
54 4.50 4.15 3.86 3.60 3.38 3.18
Stock Gearing Setups for Bevel Drive Ducati Bikes
 Source:  Ian Falloon, Ducati Twins Restoration Guide - Bevel Drive  1971-85

1971-74         750 GT/Sport                       16/36
1974-75         750 Super Sport                   16/40
1976-79         750 Super Sport                   15/38
1974-77         860 GT/GTE                         16/40
1975-79         860/900 GTS                        15/38
1975              900 Super Sport                   16/40
1976-80          900 Super Sport                   15/38, 15/36
1977-83          900 SD Darmah                   15/38
1979-81          900 SSD Darmah                  15/36
1979-80          900 MHR                             15/36
1981-82          900 Super Sport                   16/38
1981-82          900 MHR                             15/33
1982-84          900 S2                                15/33
1983-84          900 MHR                             15/33
1984-85          1000 MHR/S2                       15/41

Remember, it has been found that using ODD/ODD or EVEN/EVEN combinations of front and rear sprocket will cause your chain to wear faster than using an ODD/EVEN combination.  Oring chains are wider etc than the old school non oring chains.  I have found it difficult to install a 16 tooth front sprocket on early roundcases [sandcast engines] using an oring chain.

My favourite combination is a 16/39 on my Darmah.  However, I stock both 15 and 16 tooth front sprockets as well as 36, 37, 38 and 39 tooth rear sprockets in order to offer the widest combinations that are more useful today.  Remember, tall gearing was installed to keep the revvs down to help pass DOT noise restrictions etc...  I prefer to get a better jump off the line, this helps around town riding etc as you never want to lug the engine.


Above: "Titan tuff" aluminum sprocket and DID 530-120 ERV chain
What is Titan Tough?  it is a super hard anodizing put on aluminum sprockets that makes it wear like a steel one.  You get lightness, long lasting and a nice color.  The Titan Tough hard coating has a dark look to it [almost black] - You can also get your sprocket done in different colors.

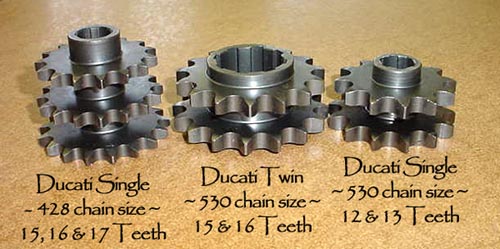

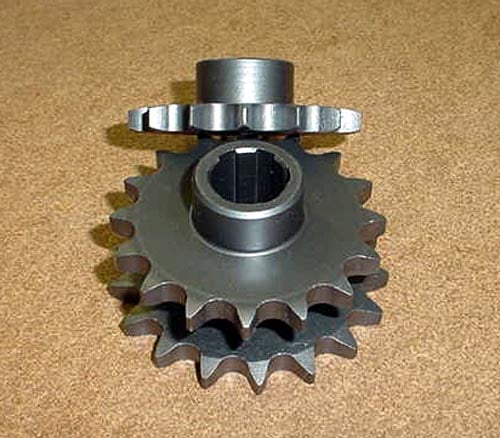

428 sprockets for singles

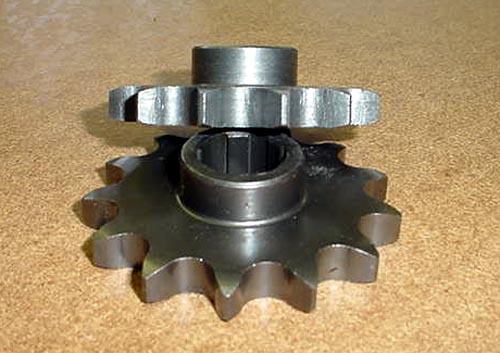

530 sprockets for singles


530 sprockets for twins

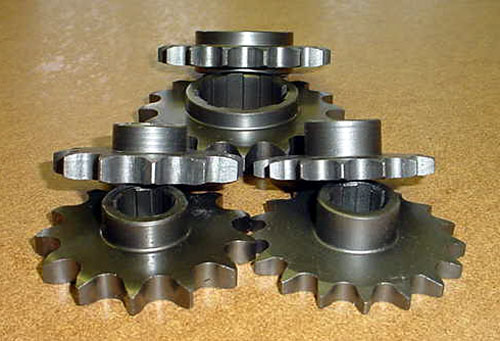

Here are all of the choices.  Italian made.
