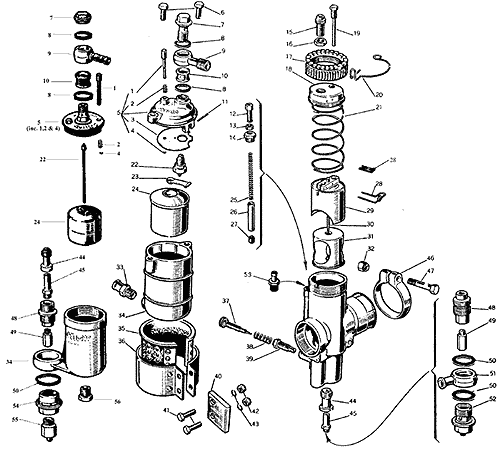

SS1 Carburetor |
|||||||
|
|||||||
Dia# | Part# | Description | Sizes available | Dia# | Part# | Description | Sizes available |
1 | 1857 | Float tickler | 32-35 | 28 | 1407 | Needle clip | 25-30 |
1 | 6534 | Float tickler | 25-30 | 29 | 3466 | Slide | 32-35 |
2 | 1288 | Tickler spring | 25-30 & 32-35 | 29 | 3686 | Slide | 32-35, Sizes 140, 150, 240 & 260 |
3 | 1902 | Anti surge plate | 32-35 | 29 | 2384 | Slide | 25-30 |
4 | 1493 | Tickler circlip | 25-30 & 32-35 | 30 | 1141 | Needle, N | 32-35, 1141.N1 |
5 | 2478 | Chamber top assy | 32-35 | 30 | 1900 | Needle, P | 32-35 |
5 | 2053 | Chamber top assy | 25-30 | 30 | 1824 | Needle, M | 25-30 |
6 | 1861 | Bolt | 32-35 | 31 | 5231 | Diffuser | 32-35 |
7 | 1955 | Banjo bolt | 32-35 | 31 | 5213 | Diffuser | 32-35 |
7 | 1494 | Banjo bolt | 25-30 | 31 | 2412 | Diffuser | 25-30 |
8 | 1416 | Banjo seal | 25-30 & 32-35 | 32 | 1751 | Clamp nut | 32-35 |
9 | 1991 | Fuel banjo | 32-35 | 33 | 1852 | Fuel outlet | 32-35 |
9 | 1564 | Fuel banjo | 25-30 | 34 | 1775 | Float bowl | 32-35 |
10 | 1419 | Fuel filter | 25-30 & 32-35 | 34 | 1737 | Float bowl | 25-30 |
11 | 1903 | Pivot pin | 32-35 | 35 | 1864 | Float bowl support | 32-35 |
12 | 1104 | Cable adjuster | 25-30 & 32-35 | 36 | 1872 | Float bowl clamp | 32-35 |
13 | 1691 | Locknut | 25-30 & 32-35 | 37 | 1753 | Mixture screw | 32.-35 |
14 | 1127 | Choke support | 25-30 & 32-35 | 37 | 1101 | Mixture screw | 25-30 |
15 | 1122 | Cable adjuster | 25-30 & 32-35 | 38 | 1116 | Mixture screw spring | 25-30 & 32-35 |
16 | 1123 | Locknut | 25-30 & 32-35 | 39 | 1752 | mixture screw holder | 32-35 |
17 | 3469 | Top ring | 32-35 | 40 | 1934 | Support plate | 32-35 |
17 | 3498 | Top ring | 32-35 | 41 | 1862 | Clamp bolt | 32-35 |
17 | 6784 | Top ring | 25-30 | 42 | 4698 | Clamp nut | 32-35 |
18 | 3468 | Carb. Top | 32-35 | 43 | 1948 | Spring washer | 32-35 |
18 | 3497 | Carb. Top | 32-35 | 44 | 1128 | Atomizer holder | 32-35 |
18 | 6783 | Carb. Top | 25-30 | 44 | 1795 | Atomizer holder | 25-35 |
19 | 3504 | Slide stop screw | 32-35 | 45 | 1121 | Atomizer | 32-35, Sizes 320 to 400, please ask |
19 | 2388 | Slide stop screw | 25-30 | 46 | 1805 | Atomizer | 25-30, Sizes 260, 268 & 272. |
19a | 1576 | Locknut | for 2388, Not shown | 46 | 1748 | Manifold clamp | 32-35 |
20 | 3592 | Locking clip | 32-35 | 46 | 1749 | Manifold clamp | 32-35 |
20 | 1740 | Locking clip | 25-30 | 46 | 1796 | Manifold clamp | 25-30 |
21 | 3465 | Slide spring | 32-35 | 47 | 1750 | Clamp bolt | 32-35 |
21 | 3500 | Slide spring | 32-35 | 47 | 4269 | clamp bolt | 25-30 |
21 | 6785 | Slide spring | 25-30 | 48 | 1125 | Main jet holder | 32-35 |
22 | 1949 | Needle valve | 32-35, Size 400 | 48 | 2386 | Main jet holder | 25-30 |
22 | 1205 | Needle valve | 25-30 | 49 | 1126 | main jet | 25/35,Sizes 120 to 350, please ask |
23 | 1901 | Actuator arm | 32-35 | 50 | 1972 | Banjo seal | 32-35 |
24 | 1893 | Float | 32-35 | 50 | 1161 | Banjo seal | 25-30 |
24 | 1156 | Float | 25-30 | 51 | 1853 | Fuel banjo | 32-35 |
25 | 1093 | Choke spring | 32-35 | 52 | 1953 | Banjo bolt | 32-35 |
25 | 1745 | Choke spring | 25-30 | 53 | 5654 | Choke plug | 32-35 |
26 | 1120 | Choke piston | 25-30 & 32-35 | 54 | 2387 | Bottom nut | 25-30 |
27 | 1747 | Cable nipple | 25-30 & 32-35 | 55 | 1801 | Bottom nut | 25-30 |
28 | 1742 | Needle clip | 32-35 | 56 | 1193 | Nut | 25-30 |
