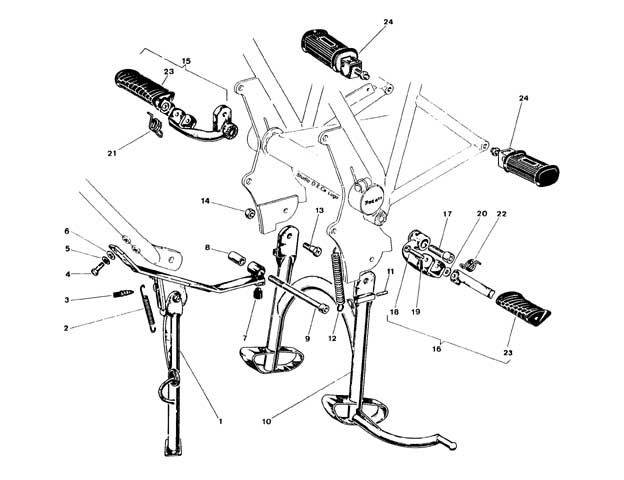

| TAV16 - Stands & footrests | ||||
|---|---|---|---|---|
| Drawing Number | Part Code | Part Name | Description | Quantity |
| TAV16.01 | 0801.12.500 | Side stand | 1 | |
| TAV16.02 | 0801.12.050 | Spring - stand | 1 | |
| TAV16.03 | 0696.38.480 | Switch - side stand | 1 | |
| TAV16.04 | 0400.09.070 | Screw | M8x1x16 | 2 |
| TAV16.05 | 73463.0868 | Washer - spring | A8.4 | 2 |
| TAV16.06 | 0171.83.130 | Washer | id8.5 x od18 x 1.0 | 2 |
| TAV16.07 | 0335.12.050 | Rubber block | 1 | |
| TAV16.08 | 0801.12.070 | Distance piece | id10.2 x od16 x 28 | 1 |
| TAV16.09 | 71502.2644 | Screw | M10x140 | 1 |
| TAV16.10 | 0801.12.100 | Centre stand | 1 | |
| TAV16.11 | 0823.12.160 | Nylon roll | 2 | |
| TAV16.12 | 0440.12.040 | Spring - stand | 1 | |
| TAV16.13 | 0795.12.010 | Centre stand pivot | 2 | |
| TAV16.14 | 0687.69.030 | Nut | M10 | 2 |
| TAV16.15 | 0801.69.100 | Footrest R.H. | 1 | |
| TAV16.16 | 0801.69.200 | Footrest L.H. | 1 | |
| TAV16.17 | 0335.59.086 | Screw | M12x40 | 2 |
| TAV16.18 | 0960.69.160 | Pin | d8 | 2 |
| TAV16.19 | 0011.01.330 | Split pin | A1.5 x 15 | 2 |
| TAV16.20 | 0504.94.120 | Washer | id8.4 x od18 x 1.5 | 2 |
| TAV16.21 | 0801.69.164 | Return spring | 1 | |
| TAV16.22 | 0801.69.264 | Return spring | 1 | |
| TAV16.23 | 0960.69.110 | Footrest rubber | 2 | |
| TAV16.24 | 0795.91.950 | Footrest, pillion | 2 | |
