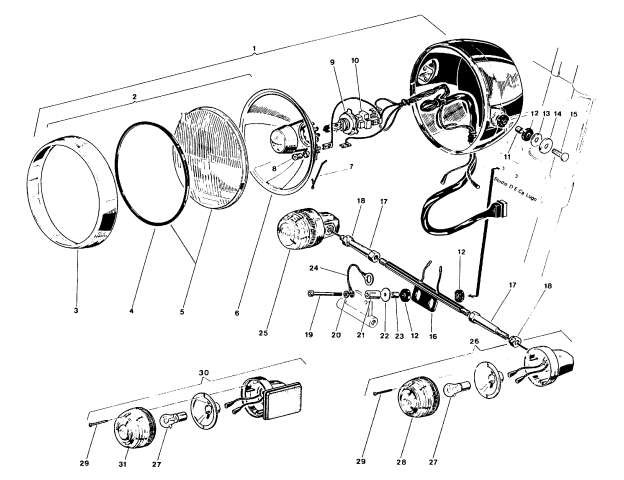

TAV18 - Headlight & Front Turn Signals | ||||
---|---|---|---|---|
Drawing Number | Part Code | Part Name | Description | Quantity |
TAV18.01 | 0801.38.200 | Headlight (complete) | European | 1 |
TAV18.01 | 0801.38.203 | Headlight (complete) | USA | 1 |
TAV18.02 | 0801.38.800 | Optical group | 1 | |
TAV18.03 | 0801.38.280 | Headlamp rim | 1 | |
TAV18.04 | 0801.38.277 | Rubber gasket | 1 | |
TAV18.05 | 0801.38.275 | Glass with gasket | 1 | |
TAV18.06 | 0801.38.270 | Reflector with lamp holders | 1 | |
TAV18.07 | 0801.38.295 | Spring | 6 | |
TAV18.08 | 0795.38.235 | Bulb - parking | 12V 3W | 1 |
TAV18.09 | 0796.38.305 | Lamp QH | 12V 60W | 1 |
TAV18.10 | 0795.38.265 | Electrical socket | 1 | |
TAV18.11 | 0819.37.025 | Bush | id8.2 x od10 x 10 | 2 |
TAV18.12 | 0801.37.075 | Rubber block | 8 | |
TAV18.13 | 0801.37.081 | Washer | id8.4 x od24 x 1.0 | 2 |
TAV18.14 | 0801.37.086 | Washer - bowl | 2 | |
TAV18.15 | 70914.2130 | Screw | M8x25 | 2 |
TAV18.16 | 0801.37.095 | Blinker support | 1 | |
TAV18.17 | 0801.03.450 | Shaft | 2 | |
TAV18.18 | 0797.03.085 | Nut - special | 2 | |
TAV18.19 | 0400.49.050 | Screw | M6x50 | 2 |
TAV18.20 | 0011.52.160 | Washer | id6.4 x od13 x 1.5 | 2 |
TAV18.21 | 0335.67.040 | Distance piece | id6.5 x od14 x 20 | 2 |
TAV18.22 | 0801.37.079 | Washer | id6.4 x od24 x 1.0 | 2 |
TAV18.23 | 0801.37.077 | Bush | id6.2 x od10 x 10 | 2 |
TAV18.24 | 0801.38.435 | Earth cable | 1 | |
TAV18.25 | 0799.03.444 | Blinker front R.H. | European | 1 |
TAV18.26 | 0799.03.484 | Blinker front L.H. | European | 1 |
TAV18.27 | 0795.03.420 | Bulb - blinker | 12V 21W | 2 |
TAV18.28 | 0799.03.413 | Reflector | European | 2 |
TAV18.29 | 72237.0721 | Screw | d2.9 x 32 | 4 |
TAV18.30 | 0799.03.483 | Blinker front L.H. | USA | 1 |
TAV18.30 | 0799.03.443 | Blinker front R.H. | USA | 1 |
TAV18.31 | 0799.03.410 | Reflector | USA | 2 |
