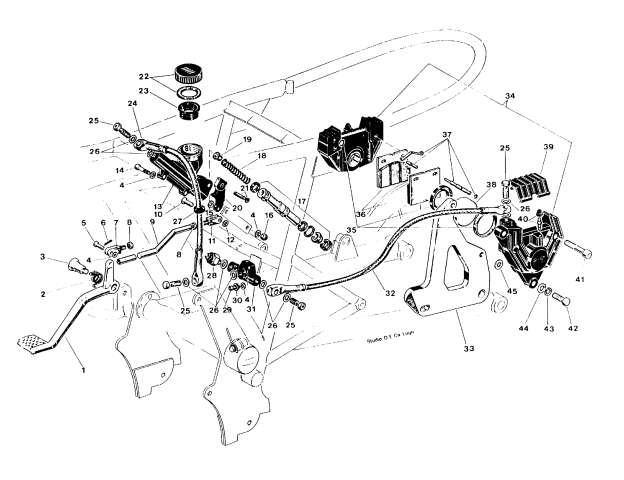

| TAV21 - Rear brake | ||||
|---|---|---|---|---|
| Drawing Number | Part Code | Part Name | Description | Quantity |
| TAV21.01 | 0801.41.100 | Brake lever - rear | 1 | |
| TAV21.02 | 0801.41.095 | Return spring | 1 | |
| TAV21.03 | 0797.41.085 | Screw - special | 1 | |
| TAV21.04 | 0011.52.160 | Washer | id6.4 x od13 x 1.5 | 6 |
| TAV21.05 | 0802.91.280 | Pin | d6 | 1 |
| TAV21.06 | 0011.01.330 | Split pin | A1.5 x 15 | 2 |
| TAV21.07 | 0802.91.270 | Brake rod fork | 1 | |
| TAV21.08 | 0170.80.283 | Nut | M7x5 | 2 |
| TAV21.09 | 0801.41.210 | Brake control rod | 1 | |
| TAV21.10 | 0797.41.025 | Pin | d7 | 1 |
| TAV21.11 | 0797.41.215 | Brake rod fork | 1 | |
| TAV21.12 | 0801.41.215 | Washer | id7.5 x od12 x 1.0 | 1 |
| TAV21.13 | 0797.41.308 | Brake pump - rear | 1 | |
| TAV21.14 | 71502.1641 | Screw | M6x30 | 2 |
| TAV21.15 | 0204.03.090 | Distance piece | id6.5 x od12 x 3.0 | 2 |
| TAV21.16 | 0056.91.050 | Nut | M6 | 2 |
| TAV21.17 | 0795.39.739 | Pump gasket set | 1 | |
| TAV21.18 | 0795.39.679 | Return spring | 1 | |
| TAV21.19 | 0795.39.678 | Brake bowl | 1 | |
| TAV21.20 | 0797.41.358 | Pump control lever | 1 | |
| TAV21.21 | 0797.39.705 | Lever pin set | 1 | |
| TAV21.22 | 0820.39.676 | Brake fluid cap -rear (complete) | 1 | |
| TAV21.23 | 0820.39.711 | Bellows | 1 | |
| TAV21.24 | 0801.41.435 | Brake line - rear (flexible) | L=320 | 1 |
| TAV21.25 | 0796.54.184 | Screw - special | 4 | |
| TAV21.26 | 0795.54.116 | Washer | 9 | |
| TAV21.27 | 0797.41.090 | Rubber grommet | 1 | |
| TAV21.28 | 0796.54.116 | Stop switch | 1 | |
| TAV21.29 | 71502.1631 | Screw | M6x20 | 1 |
| TAV21.30 | 73463.0664 | Washer - spring | A6.4 | 1 |
| TAV21.31 | 0801.41.445 | Twin control - rear brake | 1 | |
| TAV21.32 | 0801.41.425 | Brake line - rear (flexible) | L=445 | 1 |
| TAV21.33 | 0801.80.050 | Plate | 1 | |
| TAV21.34 | 0799.37.800 | Brake caliper R.H. | 1 | |
| TAV21.35 | 0795.39.741 | Caliper gasket set | 1 | |
| TAV21.36 | 0795.39.656 | Brake pad | MF02 soft | 2 |
| TAV21.36 | 0960.39.656 | Brake pad | MF01 hard | 2 |
| TAV21.37 | 0795.39.742 | Pin replacement set | 1 | |
| TAV21.38 | 0795.39.652 | Piston | 2 | |
| TAV21.39 | 0795.39.657 | Cover - brake caliper | 1 | |
| TAV21.40 | 0795.39.787 | Brake bleeder valve | 2 | |
| TAV21.41 | 71502.2615 | Screw | M10x50 | 2 |
| TAV21.42 | 0795.37.090 | Screw | M10x30 | 2 |
| TAV21.43 | 73463.1083 | Washer | A10.5 | 2 |
| TAV21.44 | 0023.37.153 | Washer | id10.5 x od18 x 1.0 | 2 |
| TAV21.45 | 0795.37.092 | Washer | id10.2 x od17 x 0.2 | 1 |
| TAV21.45 | 0795.37.094 | Washer | id10.2 x od17 x 0.3 | 1 |
| TAV21.45 | 0795.37.098 | Washer | id10.2 x od17 x 0.8 | 1 |
| TAV21.45 | 0795.37.096 | Washer | id10.2 x od17 x 0.5 | 1 |
