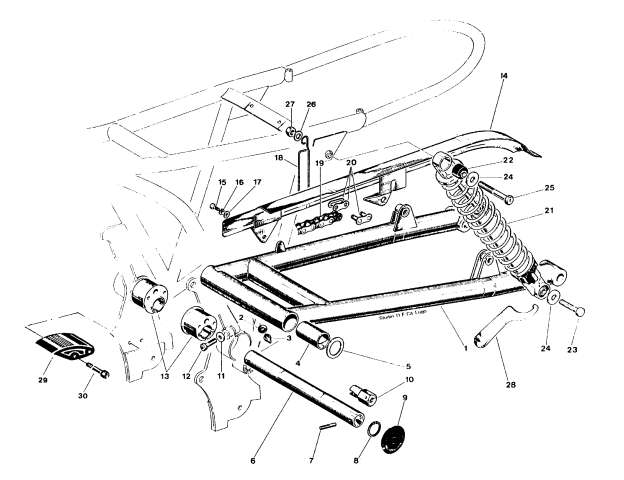

TAV22 - Chain, guard, swing-arm, suspension | ||||
---|---|---|---|---|
Drawing Number | Part Code | Part Name | Description | Quantity |
TAV22.01 | 0801.40.200 | Swingarm fork | 1 | |
TAV22.02 | 0011.02.050 | Gasket | 1 | |
TAV22.03 | 0799.40.335 | Grease nipple | 1 | |
TAV22.04 | 0960.40.320 | Bush | 2 | |
TAV22.05 | 0960.40.060 | Washer | id28.1 x od40 x 0.8 | 2 |
TAV22.06 | 0960.40.010 | Central tube | 1 | |
TAV22.07 | 0960.40.080 | Driving axle | d6 x 35 | 2 |
TAV22.08 | 73503.2872 | Circlip | 28I | 2 |
TAV22.09 | 0960.40.020 | Cover - swingarm adjuster | 2 | |
TAV22.10 | 0960.03.215 | Chain adjuster | 1 | |
TAV22.11 | 0270.37.230 | Washer | id8.5 x od18 x 1.5 | 2 |
TAV22.12 | 0089.41.030 | Screw | M8x1x28 | 2 |
TAV22.13 | 0960.91.214 | Eccentric | 2 | |
TAV22.14 | 0801.14.200 | Chain guard | 1 | |
TAV22.15 | 0150.70.080 | Screw | M6x12 | 1 |
TAV22.16 | 73463.0664 | Washer - spring | A6.4 | 1 |
TAV22.17 | 0011.52.160 | Washer | id6.4 x od13 x 1.5 | 1 |
TAV22.18 | 0801.41.065 | Fork | 1 | |
TAV22.19 | 0801.14.100 | Chain (complete) | Drive n=106 | 1 |
TAV22.20 | 0801.14.120 | Chain link | 1 | |
TAV22.21 | 0801.59.100 | Damper - rear | L=300 until 900989 | 2 |
TAV22.21 | 0801.59.103 | Damper - rear | L=315 from 900990 | 2 |
TAV22.22 | 0960.59.110 | Silent-block | id10 x od25 x 22 | 4 |
TAV22.23 | 0801.59.070 | Screw | M10x1.25x45 | 3 |
TAV22.24 | 0960.59.040 | Washer | id10.5 x od28 x 1.5 | 4 |
TAV22.25 | 0801.59.080 | Screw | M10x1.25x70 | 1 |
TAV22.26 | 0023.37.153 | Washer | id10.5 x od18 x 1.0 | 1 |
TAV22.27 | 0820.59.030 | Nut | M10x1.25 | 1 |
TAV22.28 | 0960.03.390 | Damper adjuster tool | 1 | |
TAV22.29 | 0801.91.070 | Buffer | 1 | |
TAV22.30 | 0400.29.110 | Screw | M6x35 | 2 |
